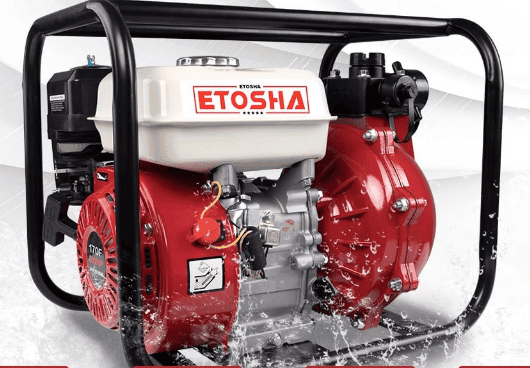

• Here are the specs to a generic 196 cc motor

Here are the specs to the Honda 200 GX

The post Pump differences between Honda GX 200 and Generic Counterparts appeared first on Wildfire Watchdog.

Automated Wildfire Protection System: A Comprehensive Guide

Introduction

In the face of increasing wildfire threats, having an automated wildfire protection system is more crucial than ever. Our system is designed to be user-friendly and highly efficient, offering both manual and automatic activation options. Here’s how it works:

System Activation

Trigger: The system can be activated either by a virtual push button in a mobile app or by flame sensors.
Fire Department Override: In emergency situations, the Fire Department has the ability to override the system for immediate activation.

Pump Priming (Valve 1)

Action: The first step is to open Valve 1, which primes the pump with water from the source.

Pump Power Initialization

Action: A relay output, known as RO1, is used to activate the pump’s battery, powering up the system.

Pump Start

Action: The pump’s starter and choke are engaged for 3 seconds to initiate the pumping process.

Sprinkler Activation (Valve 2)

Action: Valve 2 is opened to route water to the sprinkler system, activating the sprinklers.

Vibration Sensor Monitoring

Action: A wireless vibration sensor is used to confirm that the pump is operational and running as expected.

Flow and Immersion Sensors

Flow Meter: This sensor checks the water flow rates to ensure optimal operation.
Immersion Sensor: This sensor monitors the water levels in the tank to prevent overflow or depletion.

Foam Proportioning and Zoning (Valves 3, 4, 5)

Action: Valve 3 is opened to enable foam proportioning.
Zones: The system activates Zone 1, which targets the roof, and Zone 2, which targets the sides of the house. Each zone is active for 20 minutes.

Landscape Irrigation (Valves 6, 7, 8)

Action: Valve 6 is opened to allow fresh water for landscape irrigation.
Zones: Zone 3 irrigates the North landscape, and Zone 4 irrigates the South landscape. Both zones are active for 20 minutes.

Continuous Monitoring

Sensors: The system employs a Pressure Immersion Sensor, Flow Meter, and Vibration Sensors for real-time monitoring.
Alerts: The system will alert you for empty tank conditions, abnormal flow rates, or excessive pump vibrations.

System Shutdown and Refill (Valves 2, 6, 9)

Action: All active valves are closed to shut down the system.
Refill: Valve 9 is opened to refill the water tank from an external source.
Fail-Safe: As a safety measure, Valve 9 will automatically close once the sensors indicate that the tank is full, preventing any overflow.

Conclusion

Our automated wildfire protection system is designed to offer maximum safety with minimum hassle. With its user-friendly interface and advanced sensor technology, it provides a comprehensive solution for wildfire protection.

The post How Wildfire Watchdog Works appeared first on Wildfire Watchdog.

Introduction

The threat of wildfires is a growing concern for many communities, especially those located near wildland areas. While traditional firefighting methods focus on controlling the wildfire itself, there’s a shift in perspective that emphasizes home ignition as the real problem. This brings us to the importance of exterior fire sprinklers as a proven, affordable, and easily implementable solution for protecting homes and properties.

Effectiveness Proven

Exterior fire sprinklers have been shown to be highly effective in protecting properties during wind-driven wildfires. In one case, exterior sprinklers were installed on numerous properties, including homes and resorts. All of these properties survived the wildfire, while more than 100 neighboring properties were destroyed.

Affordability

The cost of installing exterior fire sprinklers can be covered by hazard mitigation grants. For an average home, the installation cost ranges from $10,000 to $15,000. Grants can cover a significant portion of this cost, making it affordable for individual property owners.

Additional Funding

Due to the success of these sprinkler systems, additional grants have been awarded to expand the installation of wildfire sprinkler systems in various counties. These grants have also been used to retrofit homes with non-flammable roofing and ember-resistant attic vents.

How They Work

Exterior sprinklers operate by creating an environment that extinguishes embers, which are the primary cause of building ignition during wildfires. They achieve this by:

1. Hydrating potential fuels, making them less susceptible to ignition.
2. Increasing humidity around the property.
3. Creating a cooler microclimate around the home.

Overcoming Doubts

There are common misconceptions about the feasibility of exterior fire sprinklers, such as:

• High cost
• Ineffectiveness in windy conditions
• Loss of water pressure during catastrophic events
• Power outages disabling water pumps

However, these concerns are either incorrect or can be easily addressed. For instance, wind has been shown not to significantly impact the effectiveness of the sprinklers. Also, independent systems can be set up to operate off the grid, ensuring functionality even during catastrophic events.

Conclusion

Exterior fire sprinklers offer a proven and affordable solution for protecting homes and properties from the devastating effects of wildfires. They are an essential tool in the arsenal of wildfire preparedness and should be considered by any community or individual living in wildfire-prone areas.

The post The Power of Exterior Fire Sprinklers in Wildfire Protection appeared first on Wildfire Watchdog.
